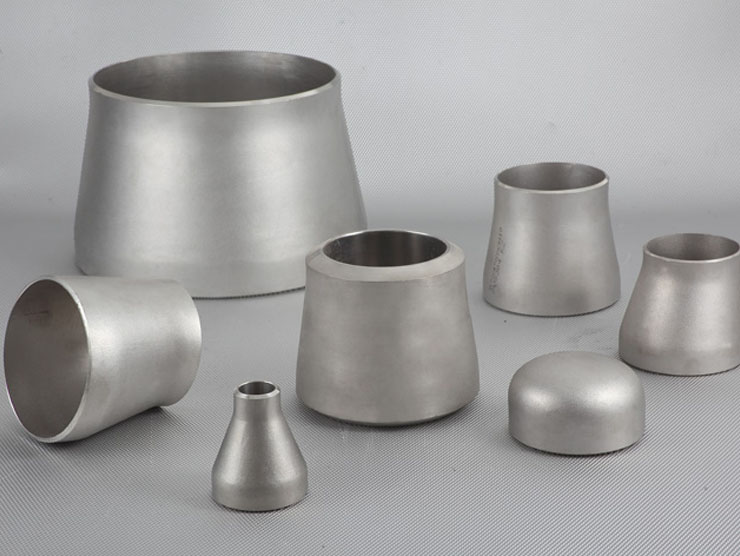

A buttweld reducer is a type of pipe fitting used to connect pipes of different diameters, facilitating a smooth transition in the flow of liquids, gases, or other substances. It is designed to fit precisely by welding the ends of the reducer to the larger and smaller pipes. There are two main types: concentric reducers, where the pipe centers align, and eccentric reducers, where the smaller pipe is offset. Made from materials like carbon steel, stainless steel, and alloys (e.g., 304, 316, P91), buttweld reducers are commonly used in various industries such as chemical, oil & gas, and plumbing.
Types of Reducers

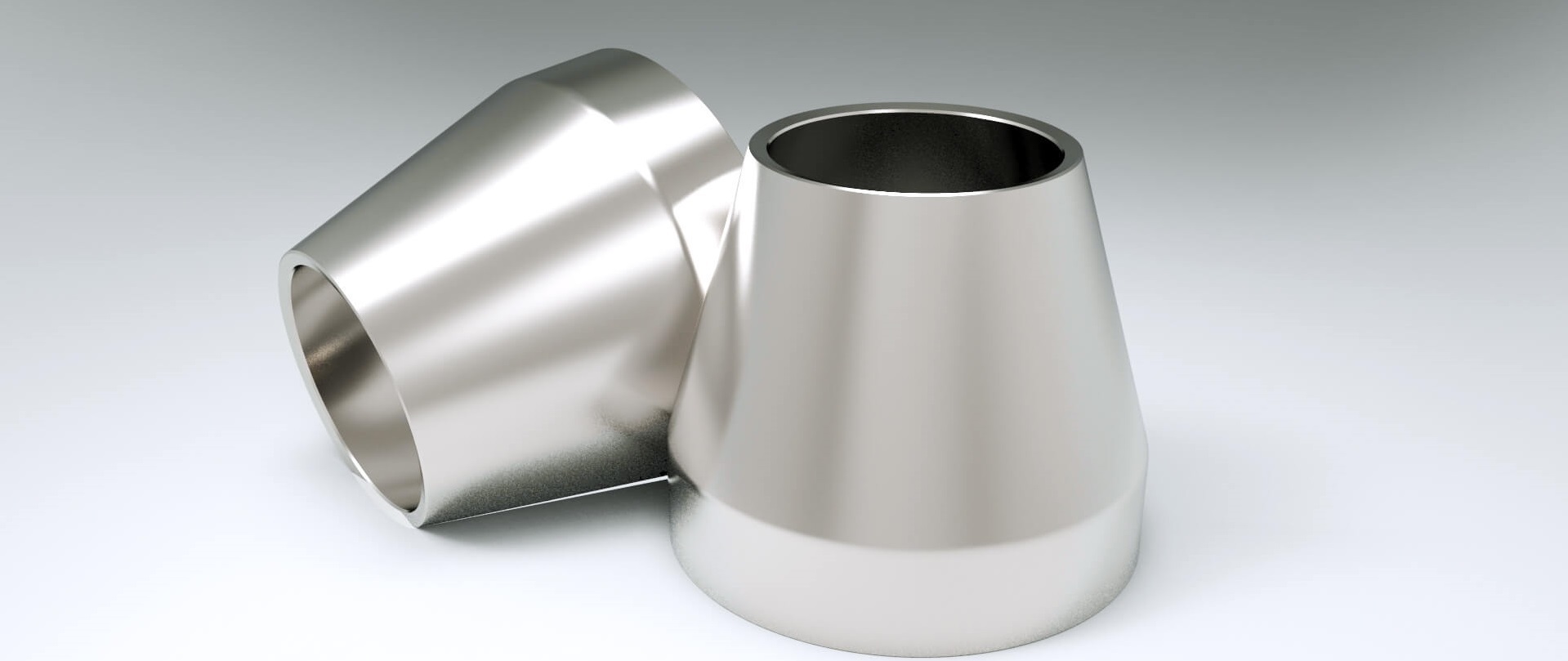

- Concentric Reducer: The ends of the reducer are aligned concentrically. Typically used in vertical pipe applications.
- Eccentric Reducer: The ends are offset, preventing air pockets in the system. Ideal for horizontal pipe applications.
Materials
Reducers can be made from various materials including:
- Carbon Steel
- Stainless Steel
- Alloy Steel
- Copper
- PVC, CPVC
- Cast Iron
Grades
| Material Grade | Standard | Common Use | Temperature Range | Strength Characteristics |
|---|---|---|---|---|
| A234 WPB | ASTM A234 | General-purpose carbon steel | Up to 450°C (842°F) | Good strength and toughness |
| A234 WPC | ASTM A234 | Low-temperature applications | Up to 425°C (798°F) | Moderate strength, better for low-temp |
| A234 WPL6 | ASTM A234 | High-temperature, low-alloy | Up to 540°C (1000°F) | High strength at elevated temps |
| 304 | ASTM A312 | General-purpose stainless steel | Up to 870°C (1600°F) | Excellent corrosion resistance |
| 316 | ASTM A312 | Corrosive environments | Up to 870°C (1600°F) | Better corrosion resistance than 304 |
| 317L | ASTM A312 | Aggressive chemical environments | Up to 870°C (1600°F) | Superior corrosion resistance |
| P5 | ASTM A234 | High-temperature alloy steel | Up to 540°C (1000°F) | High strength in high-temperature environments |
| P11 | ASTM A234 | High-pressure and high-temp | Up to 575°C (1065°F) | Enhanced strength |
| P22 | ASTM A234 | High-temp and high-pressure | Up to 600°C (1112°F) | Excellent strength at high temps |
| P91 | ASTM A234 | Ultra-high pressure/temp | Up to 650°C (1202°F) | Exceptional high-temperature strength |
| 2205 | ASTM A790 | Seawater and offshore services | Up to 300°C (572°F) | High resistance to corrosion |
| 2507 | ASTM A790 | Super duplex, aggressive environments | Up to 300°C (572°F) | Excellent resistance to stress corrosion |
Applications
Reducers are used in various industries, including:
- Plumbing Systems – Transitioning pipe sizes for faucets, toilets, etc.
- Chemical Processing – Managing flow rates in reactors and pipelines.
- HVAC Systems – Ensuring correct airflow and system efficiency.
- Oil & Gas Pipelines – Connecting pipelines with different diameters.
- Water Distribution – Reducing pipe sizes in water treatment facilities.
End Connections
Reducers come in various connection types such as:
- Butt Welded
- Threaded
- Flanged
- Socket Welded
Advantages
- Improved flow control and efficiency.
- Cost-effective and space-saving.
- Wide versatility in industrial and residential applications.
