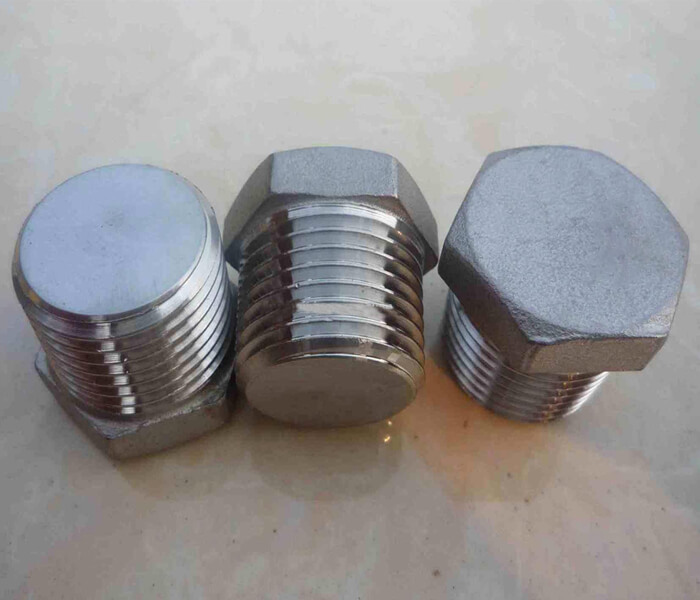

Forged fitting plugs and caps are essential components in piping systems, designed to close or seal the ends of pipes or fittings. These fittings are made through a forging process, which gives them superior strength and durability, ensuring they can withstand high-pressure, high-temperature, and corrosive environments. Plugs are typically used to seal threaded pipe ends, while caps are used to cover open ends of pipes, valves, or fittings, often for maintenance purposes.
Plugs

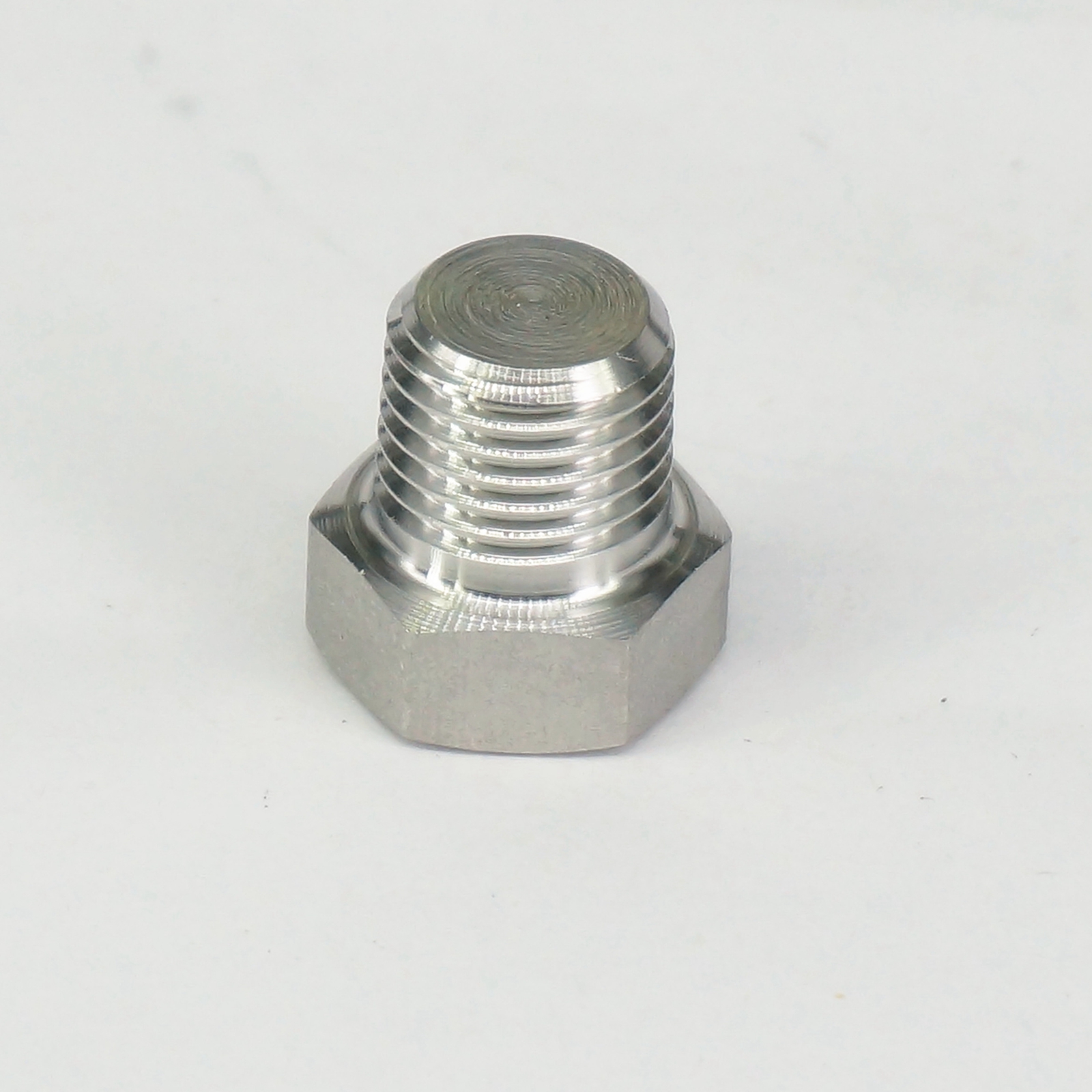

A plug is a type of pipe fitting that is used to seal off the open end of a pipe, typically threaded. The threaded plugs fit into the ends of pipes, valves, or fittings, providing a tight seal to prevent fluid leakage. These are especially useful for isolating parts of a system for maintenance or when a pipe or valve is not required to be in service.
Specifications
| Specification | Details |
|---|---|
| Type | Plugs (Threaded) or Caps (Threaded or Socket Weld) |
| Material | - Carbon Steel (ASTM A105) |
| - Stainless Steel (ASTM A182 F304, F316) | |
| - Alloy Steel (ASTM A182 F5, F9) | |
| Pressure Rating | Class 2000, 3000, 6000 |
| Size Range | Typically 1/8” to 4” NPS |
| Connection Types | - Threaded (NPT/BSP) |
| - Socket Weld (SW) | |
| Temperature Rating | Varies by material, but generally suitable for high-pressure and high-temperature systems |
| Design Standards | - ASME B16.11 |
| - MSS SP-83 | |
| - BS 3799 | |
| Finish | Threaded or smooth for socket weld (varies depending on design) |
| Applications | - Oil & Gas |
| - Power Generation | |
| - Chemical and Petrochemical Industry | |
| - Water Treatment Systems | |
| - Piping and Valve Isolation |
Grades
| Material Type | Grade | Description |
|---|---|---|
| Carbon Steel | ASTM A105 | Standard carbon steel for general-purpose applications with high-pressure rating. |
| Stainless Steel | ASTM A182 F304 | General-purpose stainless steel with good corrosion resistance. Suitable for chemical and food industries. |
| ASTM A182 F316 | Enhanced corrosion resistance, especially in marine or acidic environments. Ideal for harsh chemical processes. | |
| Alloy Steel | ASTM A182 F5 | Chromium alloy steel, designed for high-temperature and high-pressure applications, such as steam systems. |
| ASTM A182 F9 | Higher strength alloy for extremely high-temperature applications like heat exchangers, boilers, and turbines. | |
| Duplex Stainless Steel | ASTM A182 F51 | High strength and excellent corrosion resistance, especially in chloride-rich environments like marine applications. |
| Low-Temperature Carbon Steel | ASTM A350 LF2 | Specially designed for low-temperature applications, such as cryogenic systems and pipelines exposed to very low temperatures. |
| Key Feature | Description |
|---|---|
| Durability | Made using the forged process for enhanced strength, providing long-lasting performance under high pressure. |
| Leak-Proof Seal | Provides a secure, leak-proof seal for pipe ends to prevent leakage of gases, liquids, or materials. |
| High-Pressure & Temperature Resistance | Available in pressure ratings of Class 2000, 3000, 6000, designed to withstand extreme conditions. |
| Versatile Material Options | Available in Carbon Steel (ASTM A105), Stainless Steel (ASTM A182 F304, F316), and Alloy Steel. |
| Various Connection Types | Comes with Threaded (NPT/BSP) or Socket Weld connections for diverse installation needs. |
| Wide Size Range | Available in sizes from 1/8” to 4” NPS, fitting a broad range of pipe dimensions. |
| Ease of Installation | Designed for easy and fast installation, minimizing downtime during repairs or maintenance. |
| Cost-Effective Solution | Though initially pricier, offers durability and reduced maintenance costs, providing long-term value. |
| Compliance with Industry Standards | Manufactured in compliance with ASME B16.11, MSS SP-83, BS 3799, ensuring high-quality and safety. |
| Applications Across Multiple Industries | Used in Oil & Gas, Chemical, Petrochemical, Power Generation, and Water Treatment systems. |
Dimenstion Chart
| Size (NPS) | Outside Diameter (OD) (inches) | Length (inches) | Thread Type | Pressure Class (Class) |
|---|---|---|---|---|
| 1/8" | 0.405 | 1.00 | NPT/BSP | 2000, 3000, 6000 |
| 1/4" | 0.540 | 1.10 | NPT/BSP | 2000, 3000, 6000 |
| 3/8" | 0.675 | 1.20 | NPT/BSP | 2000, 3000, 6000 |
| 1/2" | 0.840 | 1.40 | NPT/BSP | 2000, 3000, 6000 |
| 3/4" | 1.050 | 1.60 | NPT/BSP | 2000, 3000, 6000 |
| 1" | 1.315 | 1.80 | NPT/BSP | 2000, 3000, 6000 |
| 1 1/4" | 1.660 | 2.00 | NPT/BSP | 2000, 3000, 6000 |
| 1 1/2" | 1.900 | 2.20 | NPT/BSP | 2000, 3000, 6000 |
| 2" | 2.375 | 2.50 | NPT/BSP | 2000, 3000, 6000 |
| 2 1/2" | 2.875 | 3.00 | NPT/BSP | 2000, 3000, 6000 |
| 3" | 3.500 | 3.50 | NPT/BSP | 2000, 3000, 6000 |
| 4" | 4.500 | 4.00 | NPT/BSP | 2000, 3000, 6000 |
